Used FG Wilson Perkins 1875kVA 1500kW Diesel Generator XP150014

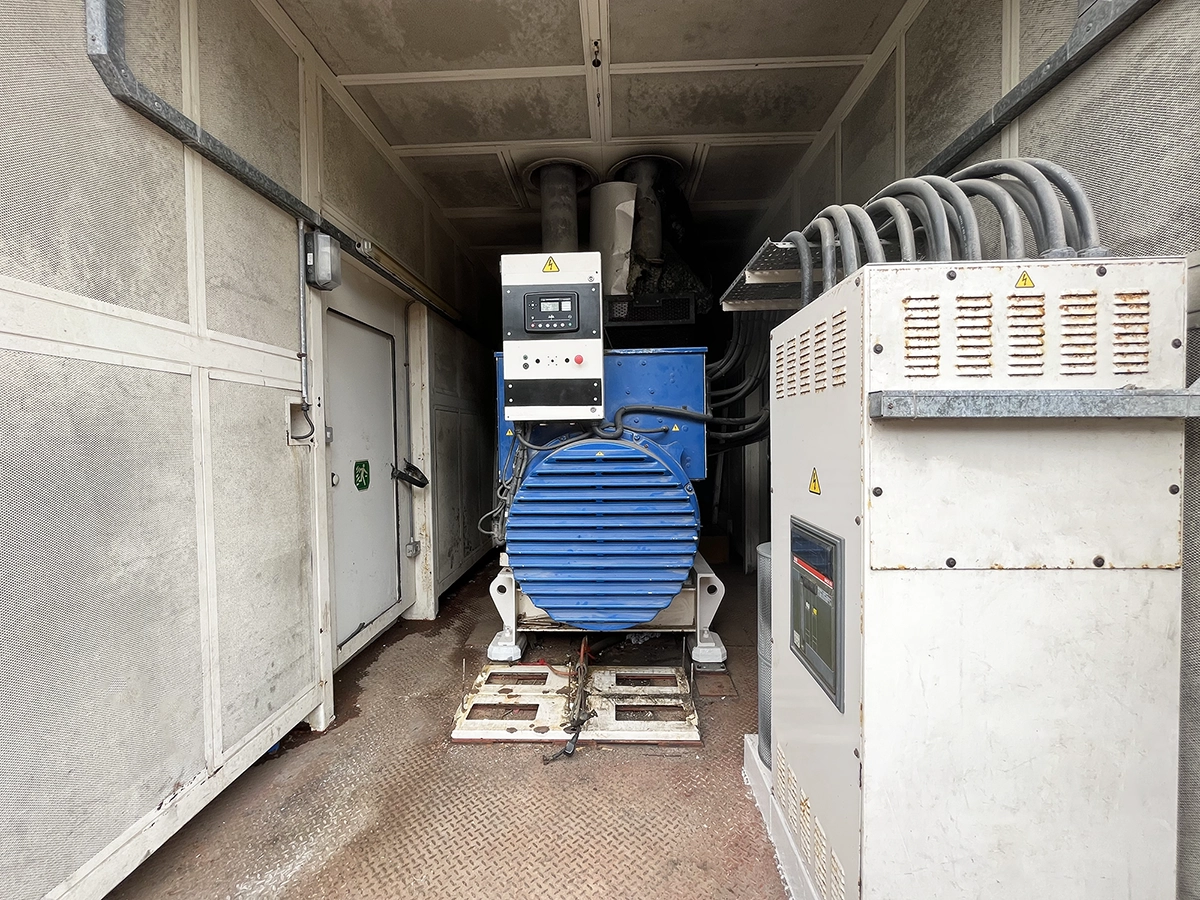

Used FG Wilson Cummins 1875 kVA / 1500 kW diesel generator, powered by a Perkins 4016TWG2 engine, running a Leroy Somer 400/230 volt, 2296 Amps, 50Hz alternator. It is controlled by an Deep Sea 7320 controller. All used units are sold in good working order, tested, and serviced at our workshop before dispatch, complete with industry-leading warranty available.

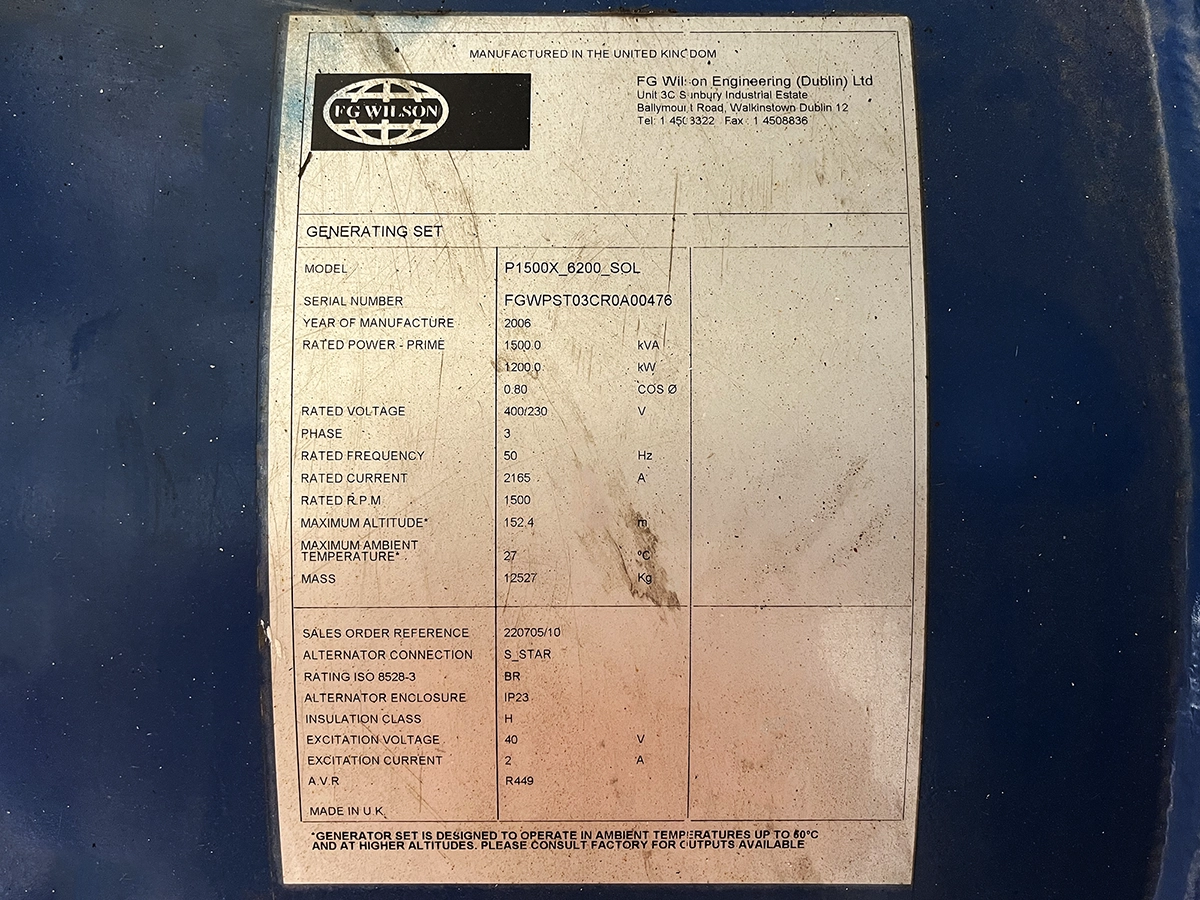

Note to power rating plate
Data plate states 1500X kva, the X identify special build. This set is rated 1700 kva prime power.
It was labelled 1500kva to meet a Utility requirement on soft return to mains.
Description
Technical Data
| Manufacturer | FG Wilson – P1700 |
| Year of Manufacture | 2006 |
| Standby | 1875.0 kVA / 1500.0 kW |
| Prime | 1700.0 kVA / 1360.0 kW |
| Engine | Perkins – 4016TWG2 |
| Engine Hours | 800 hrs |

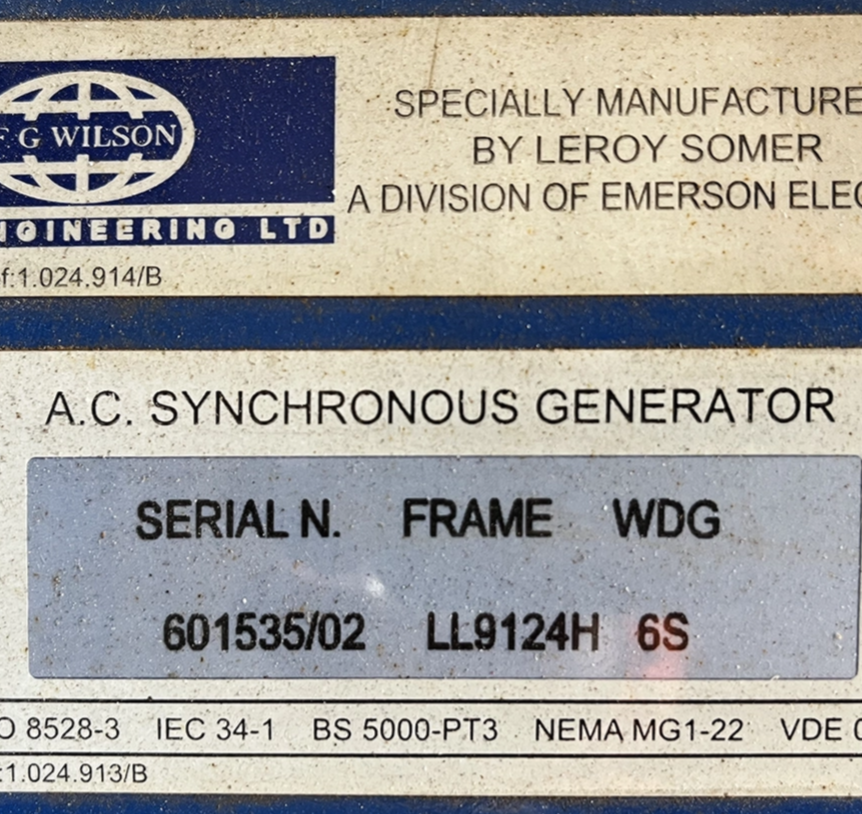

| Alternator | Leroy Somer |
| Voltage | 400/230 V |
| Current | 2296.0 A |
| Frequency | 50 Hz |

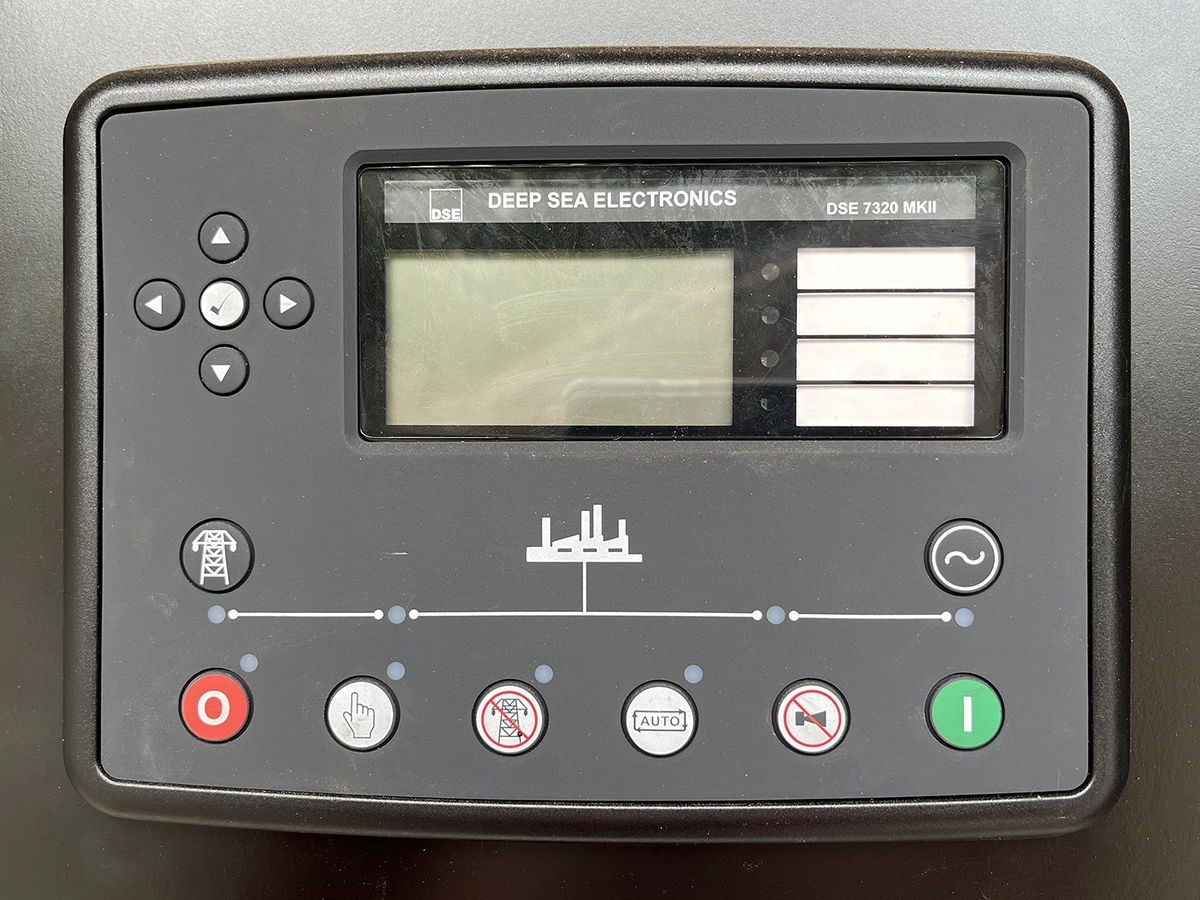

| Control Panel | Deep Sea – 7320 |

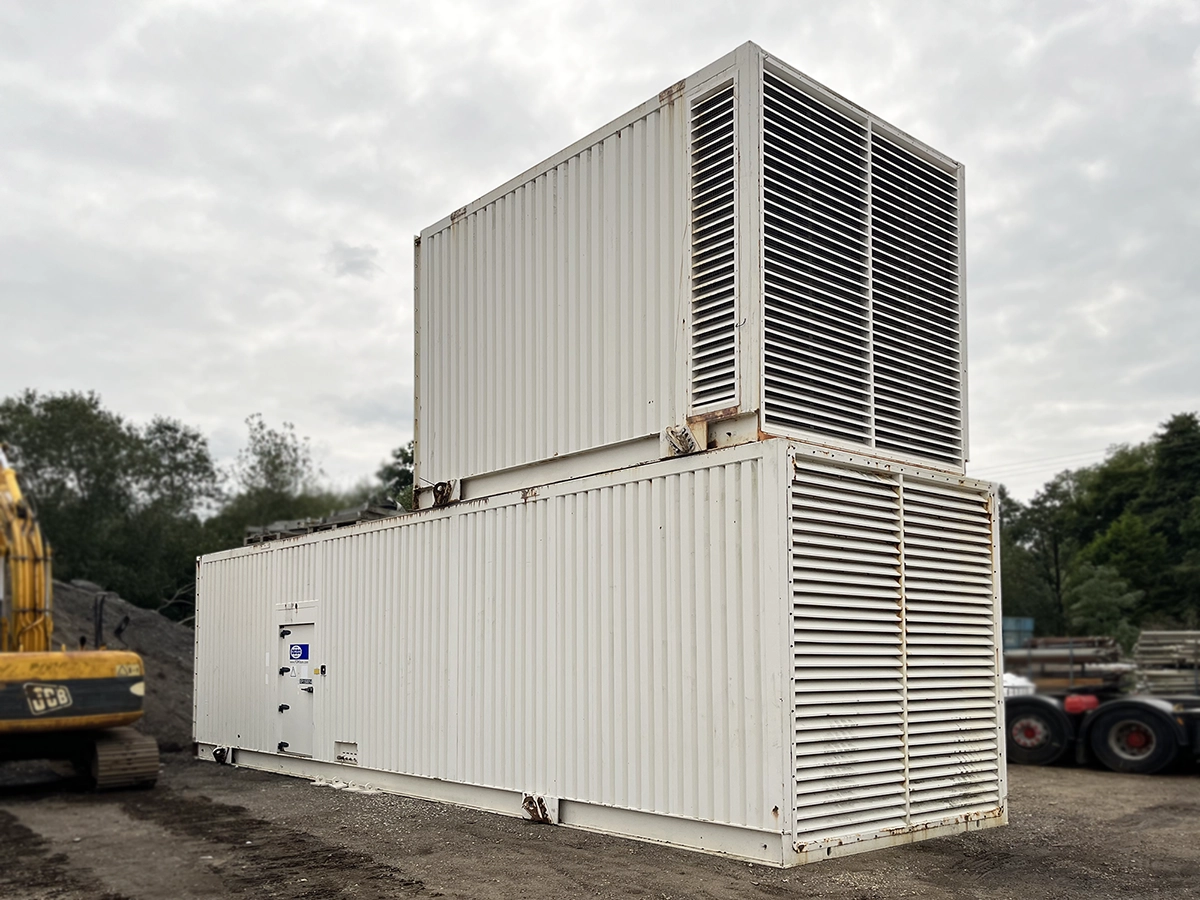

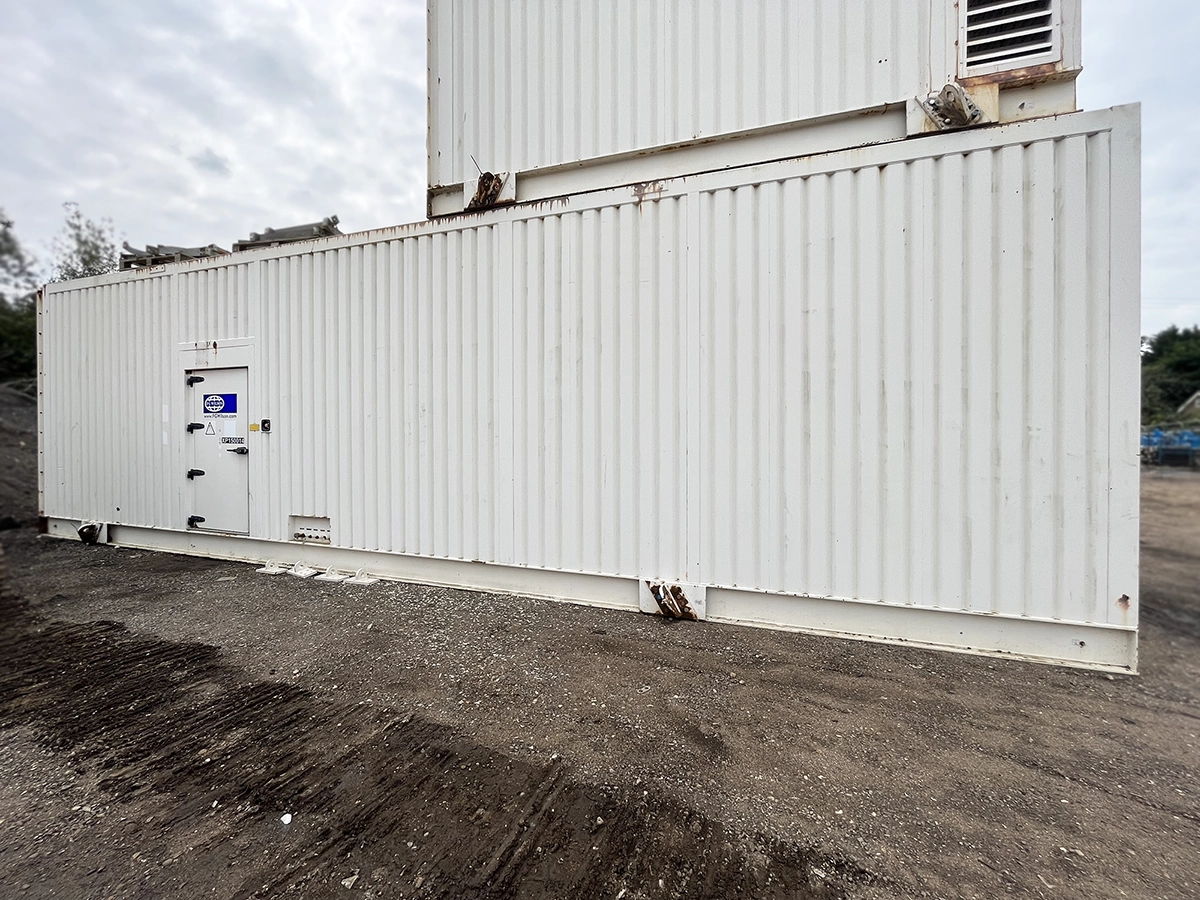

Dimensions
| Length | 12,190 mm |
| Width | 3,400 mm |
| Height | 3,750 mm |
| Weight | 46770.00 kg |
Please Note: The dimensions and weight are approximate and may be estimated.
Price on Request
