Used ABB / Siemens LV Power Distribution Panel
Used ABB / Siemens LV Power Distribution Panel - Image 2
Used ABB / Siemens LV Power Distribution Panel - Image 3
Used ABB / Siemens LV Power Distribution Panel - Image 4
Used ABB / Siemens LV Power Distribution Panel - Image 5
Used ABB / Siemens LV Power Distribution Panel - Image 6
Used ABB / Siemens LV Power Distribution Panel - Image 7
Used ABB / Siemens LV Power Distribution Panel - Image 8
Used ABB / Siemens LV Power Distribution Panel - Image 9
Used ABB / Siemens LV Power Distribution Panel - Image 10
Used ABB / Siemens LV Power Distribution Panel - Image 11
Used ABB / Siemens LV Power Distribution Panel - Image 12
Used ABB / Siemens LV Power Distribution Panel - Image 13
Used ABB / Siemens LV Power Distribution Panel - Image 14
Used ABB / Siemens LV Power Distribution Panel - Image 15

Used ABB / Siemens LV Power Distribution Panel

Technical Data

Manufacturer ABB
Serial Number 31332.03
Year of Manufacture 2007
Control Panel Siemens SIMATIC HMI
Supply Voltage/Frequency 415V 3PH 50Hz 4 Wire
Auxiliary Circuit Voltage 240V 1PH 50Hz 2 Wire
Degree of Protection IP31
Main Busbar Rating 5000A
Main Busbar Fault Level 80KA for 1 Second

Dimensions

Length 1,250 mm
Width 5,500 mm
Height 2,800 mm
Weight 6000.00 kg

Please Note: The dimensions and weight are approximate and may be estimated

Price on request

Category:

Description

LV power distribution panel previously used for connection of three 1500kva generators to a large site. Includes connection for an additional temporary generator.

In full working order prior to removal.

Consists of:

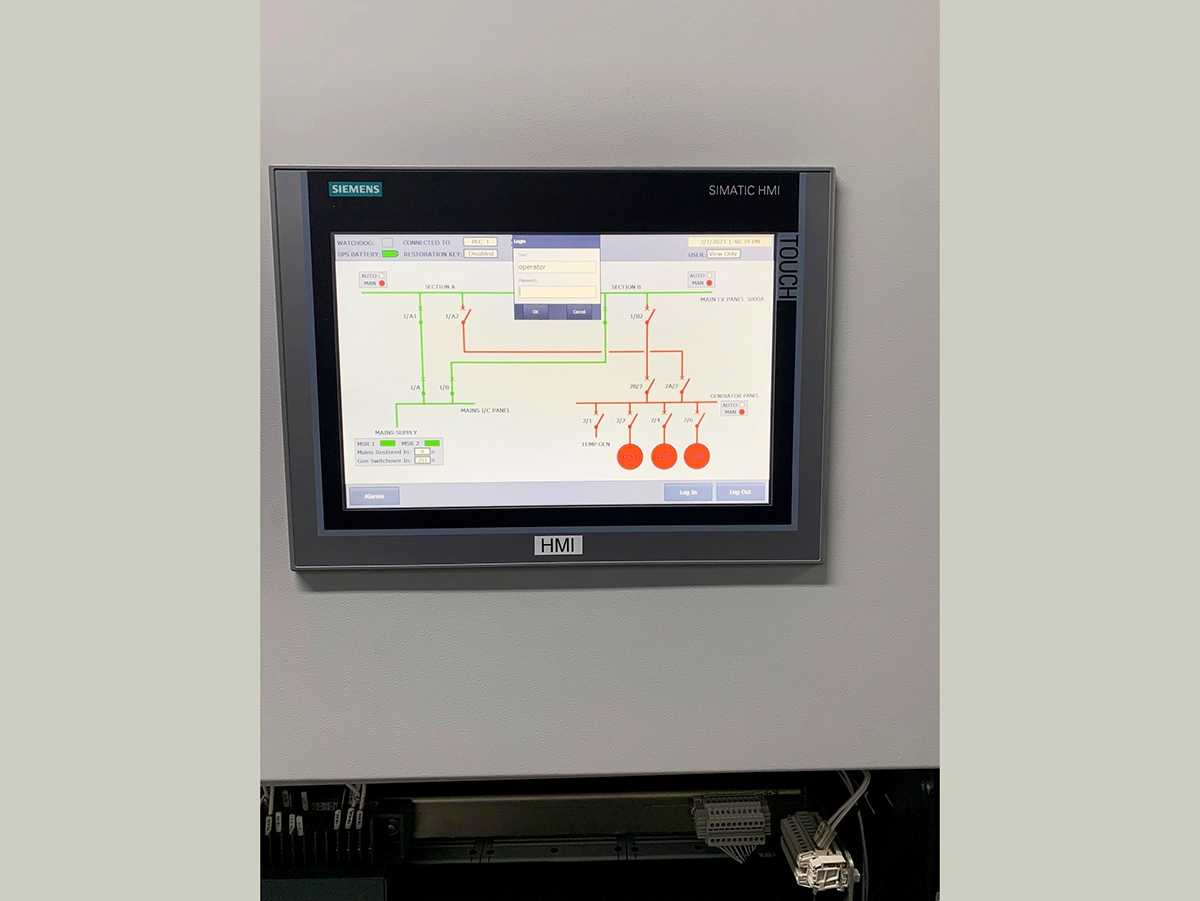

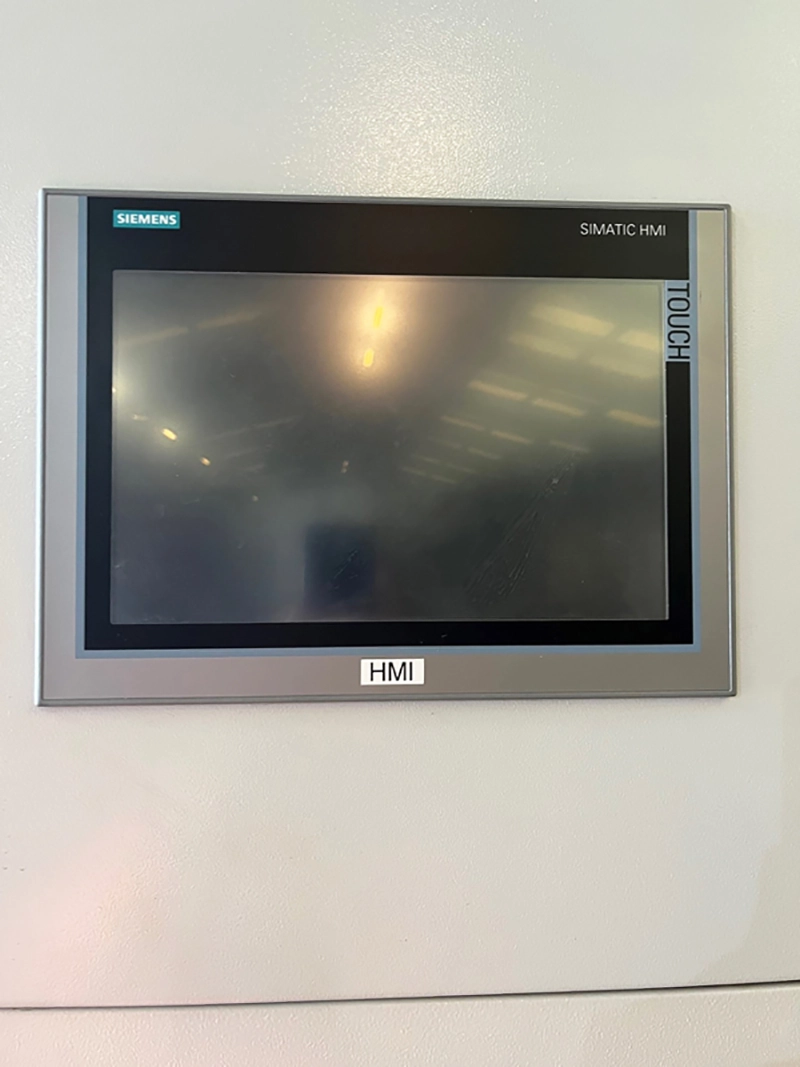

Siemens Simatic touch HMI

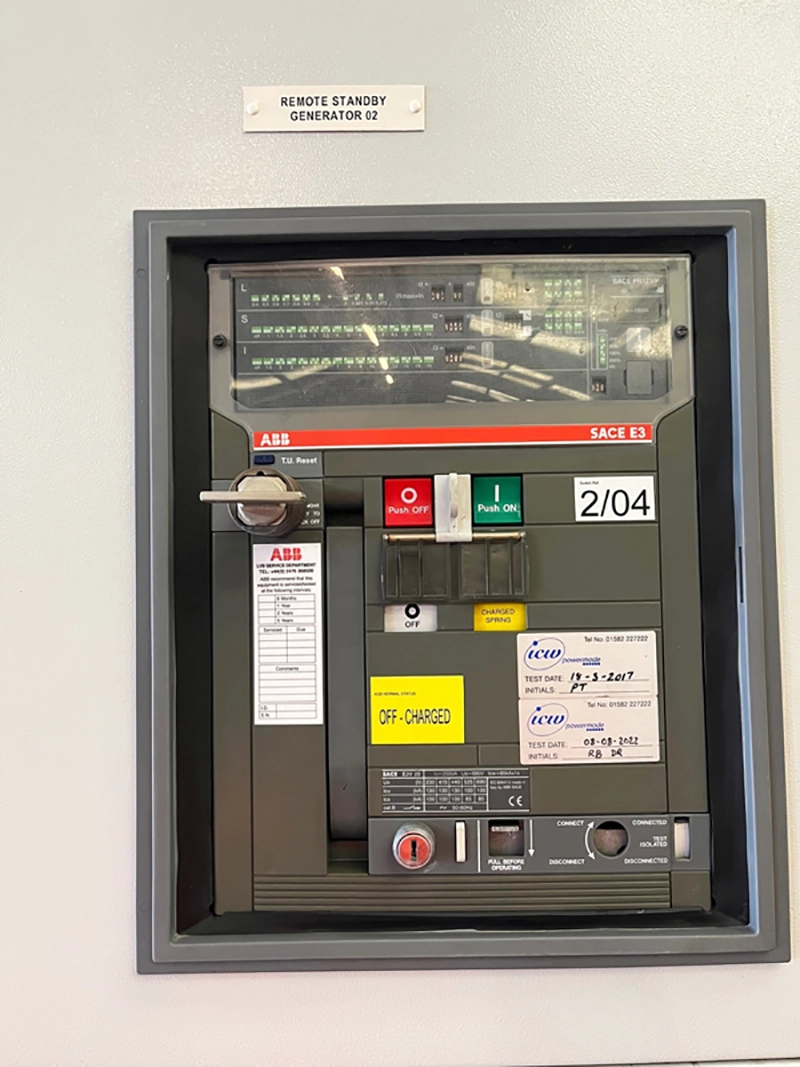

2 x ABB Sace E6H 5,000 amp ACB

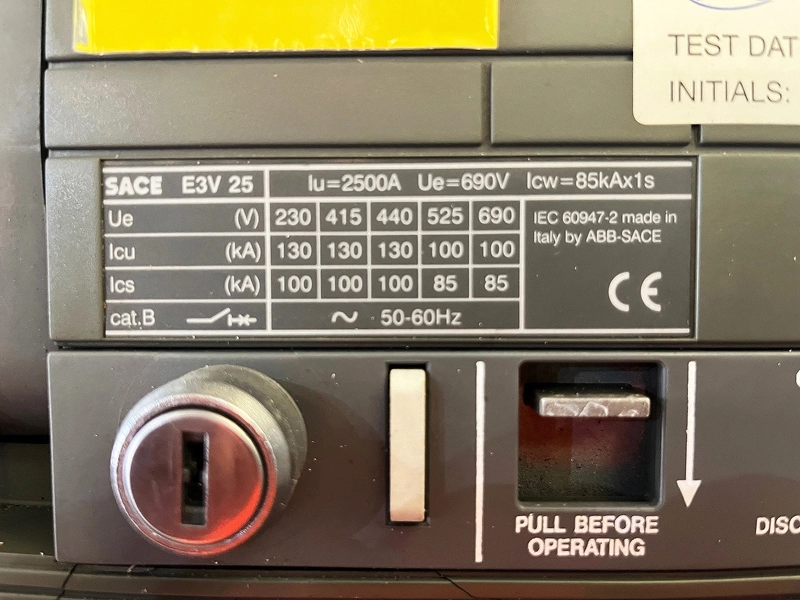

4 x ABB Sace E3V 2,500 amp ACB
Castel mechanical interlocking module
Integra power meters
Siemens BMS modules
Enclosure used for top cable entry.
