Description

​Crane Data ​

1 General​

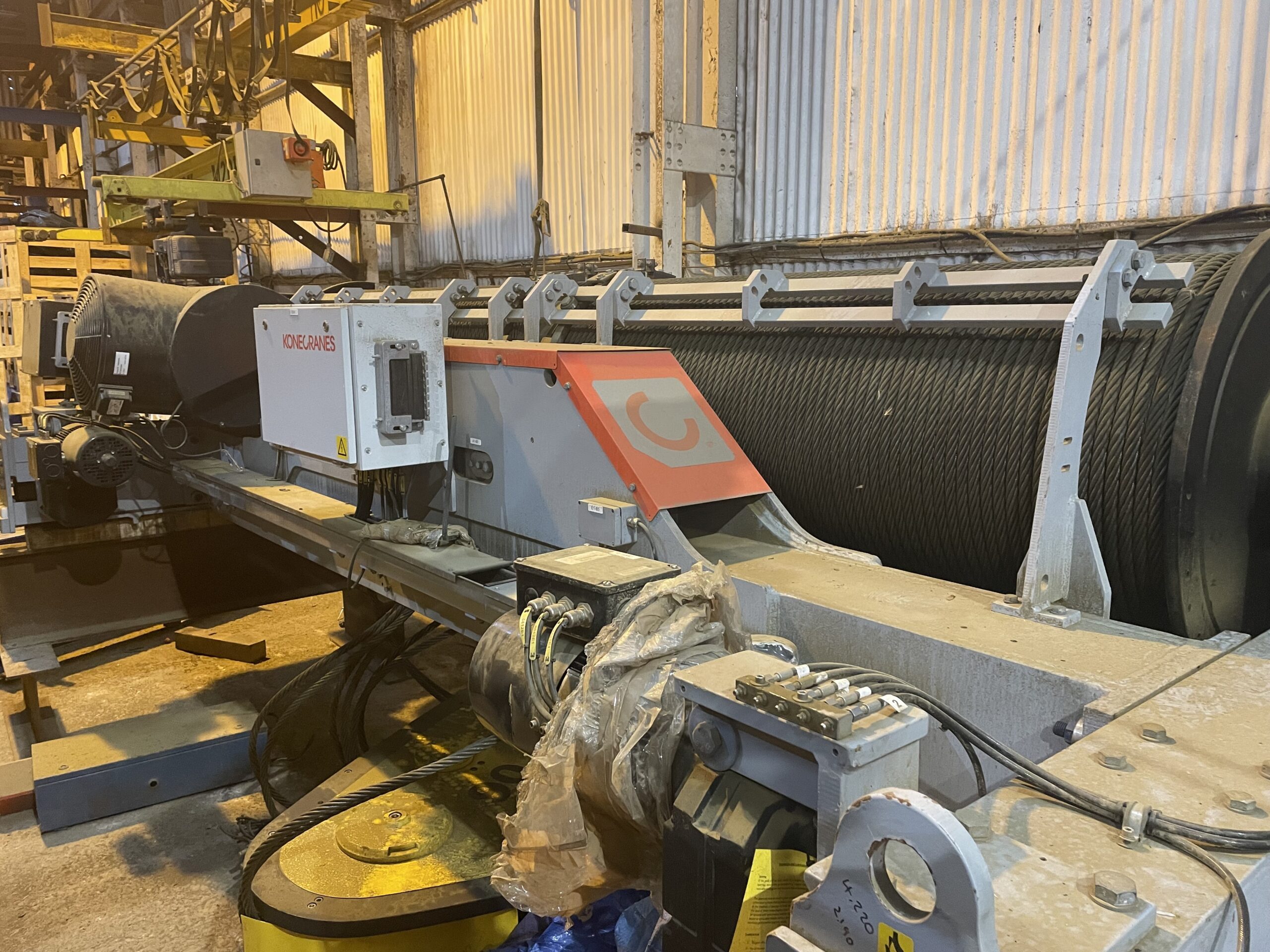

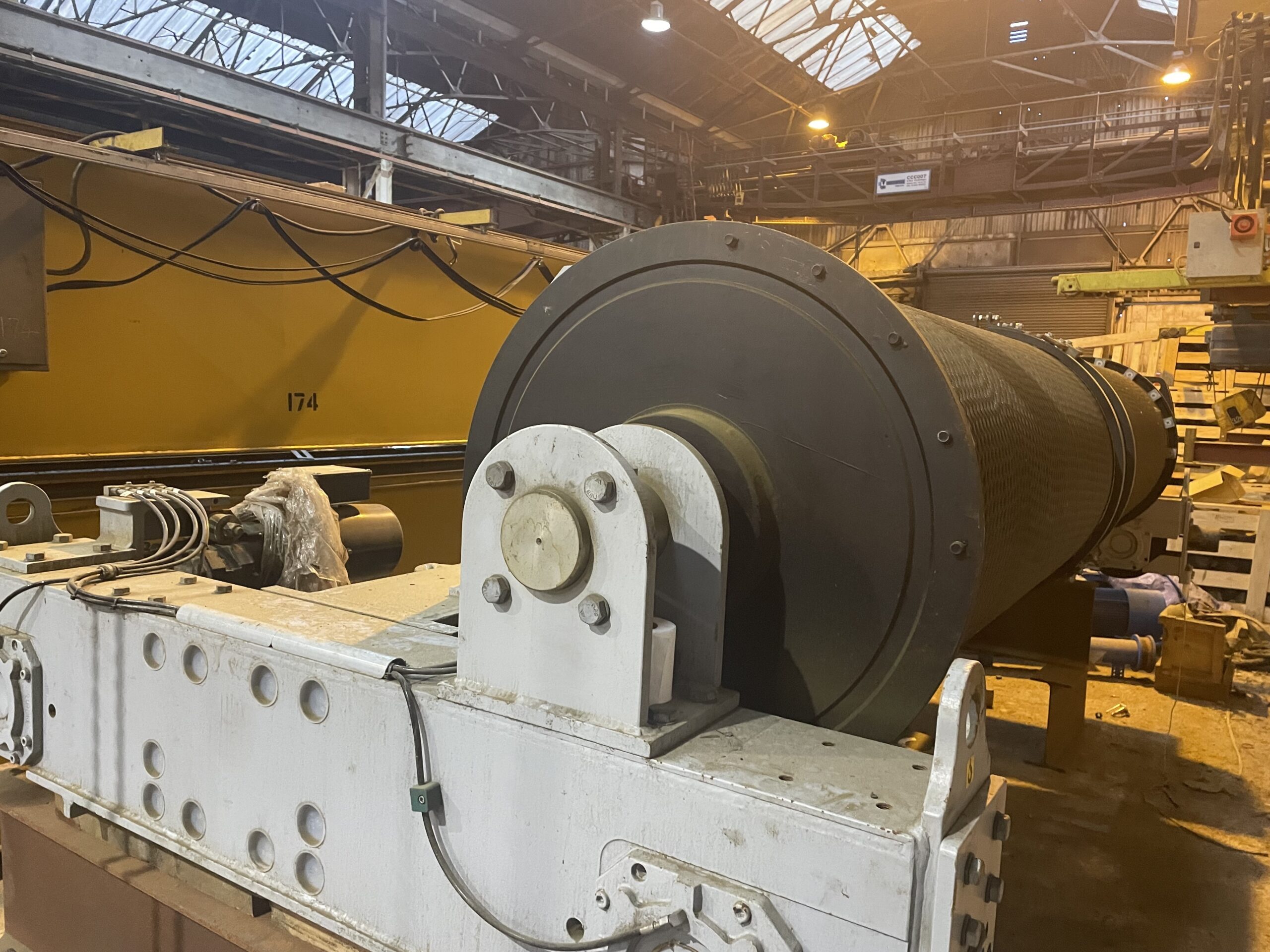

Crane type Span Crane load (SWL) Hoisting height Hoist type Crane use Hoist group Trolley travelling groupBridge travelling group Crane control Hoisting speed Trolley traversing speed Bridge travelling speed Main girdertype Additional features Twin Girder 21m approx 90t 5m approx – Clearance heights to be confirmed KoneWinch, Wire Rope Hoist/Crab – 2018 – Unused Indoor FEM M4 FEM M5 FEM M5 Mobile Pendant Control2.1m/min (ESR 4.4m/min) 16m/min Stepless 32m/min Stepless welded box​

2. Electrical​

Main voltage                             415 V / 3Ph / 50 Hz

Control voltage                       48 V​

Included in the Quotation are our Standard Features:-

Inverter controlled speeds are fitted as standard on the Long Travel and cross Traverse motions of the crane.​

1. Two speed steps are provided up to the fast speed, giving controlled acceleration and deceleration to minimize the load swing.
2.  Thermal overload protector
3. Mechanical overload device
4.  Conforms to C.E. requirements  12 months warranty (subject to a maintenance contract
5. Paint finish yellow gloss

3 Downshop Gantry Steelwork – 60m​

22 Upright profile section double columns​

20 X 6M lengths of profile section tracks supported at approx. 6.0 metre centres​

• Fasteners will be to BS3692 Min grade 8.8 or the DIN equivalent​
• Including required portal surge bracings​
• Steelwork paint finish – Grey or Red oxide primer finish as standard​

​4 Crane Conductor System​

60m of 4 Bar PVC shrouded conductor bar including all necessary fittings. Mains cable feed from clients​

isolator to be brought to the conductor box by the client for direct connection at centre point.​

​Gantry installation onto suitable floor slab or foundation pads – to be done by others​

Excluded from our supply –​

The design or supply of any civil work required.​

It is your responsibility to ensure that the proposed works complies with the planning requirements and the​

building regulations of your relevant authority.​

​Documentation​

In the event of an order the following documentation will be provided in English.​

1-copy of our standard general arrangement drawing for approval (where applicable).​

1-copy of our standard ‘’as built’’ general arrangement drawing.​

1-copy “as built” schematic wiring drawing and cable schedule.​

1-copy of our standard operating and maintenance manual.
