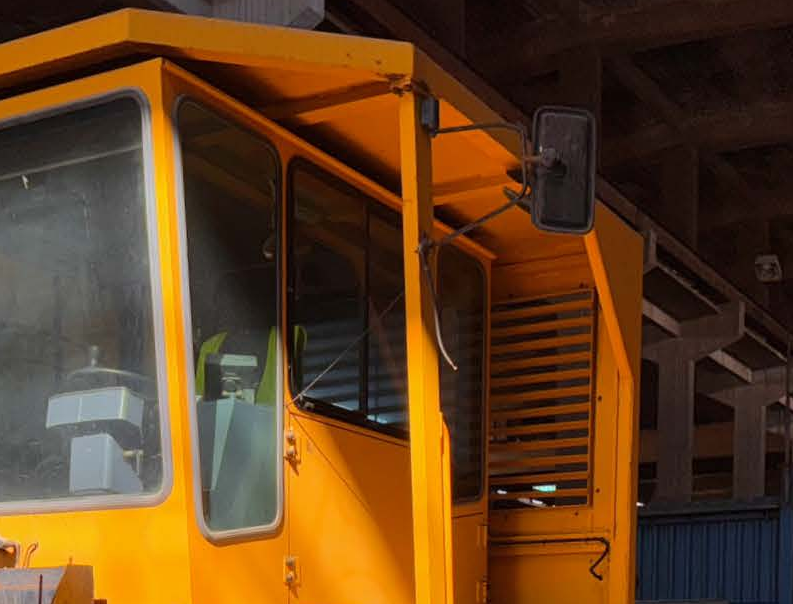

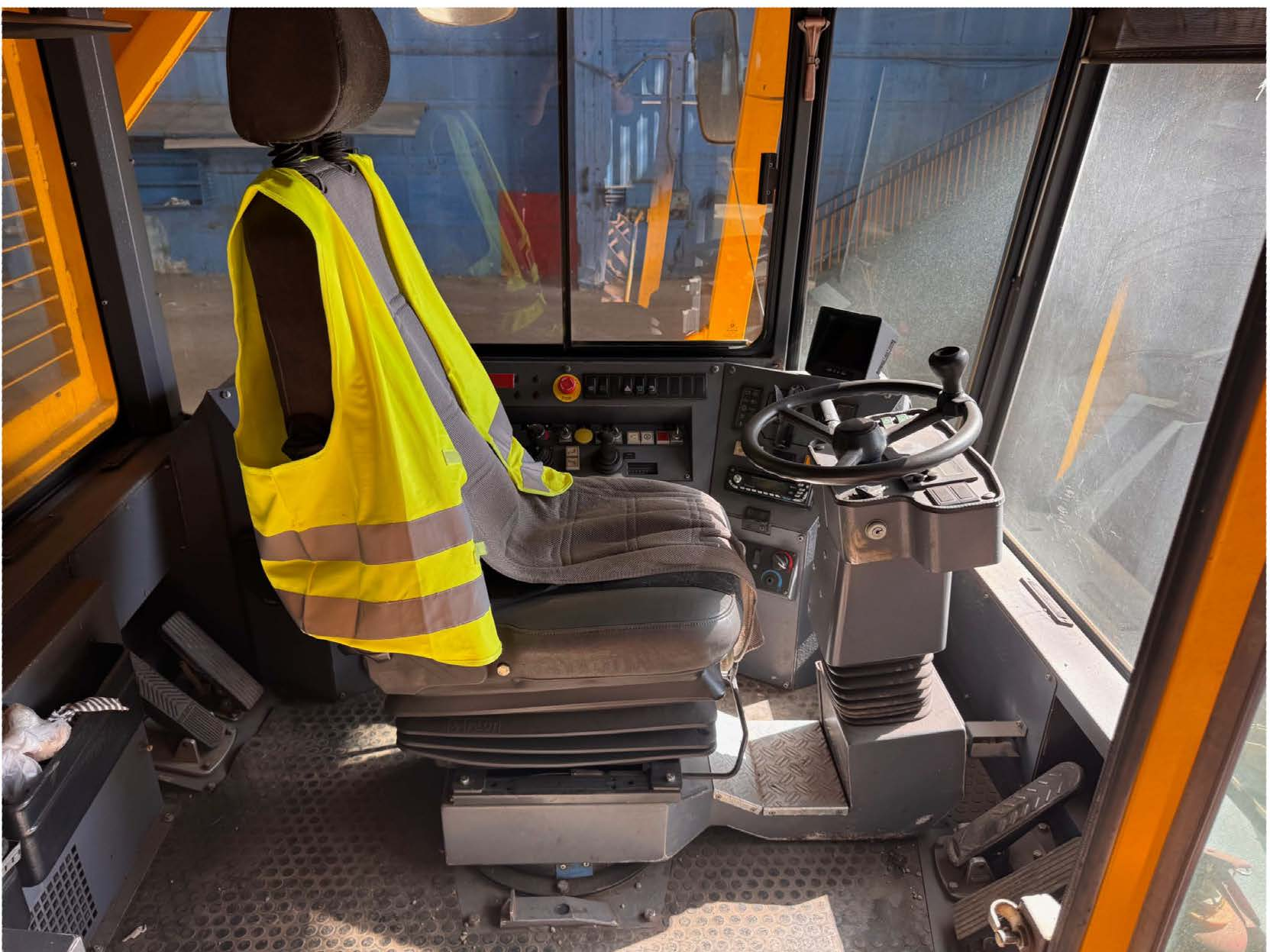

Payload approx. 150.000 kg

Dead weight approx. 57.000 kg

Total weight approx. 207.000 kg

Number of axle lines 6

Number of drive axles 2

Number of steered bogies 8

Number of brake axles 2

Number of the brake axle bogies 8

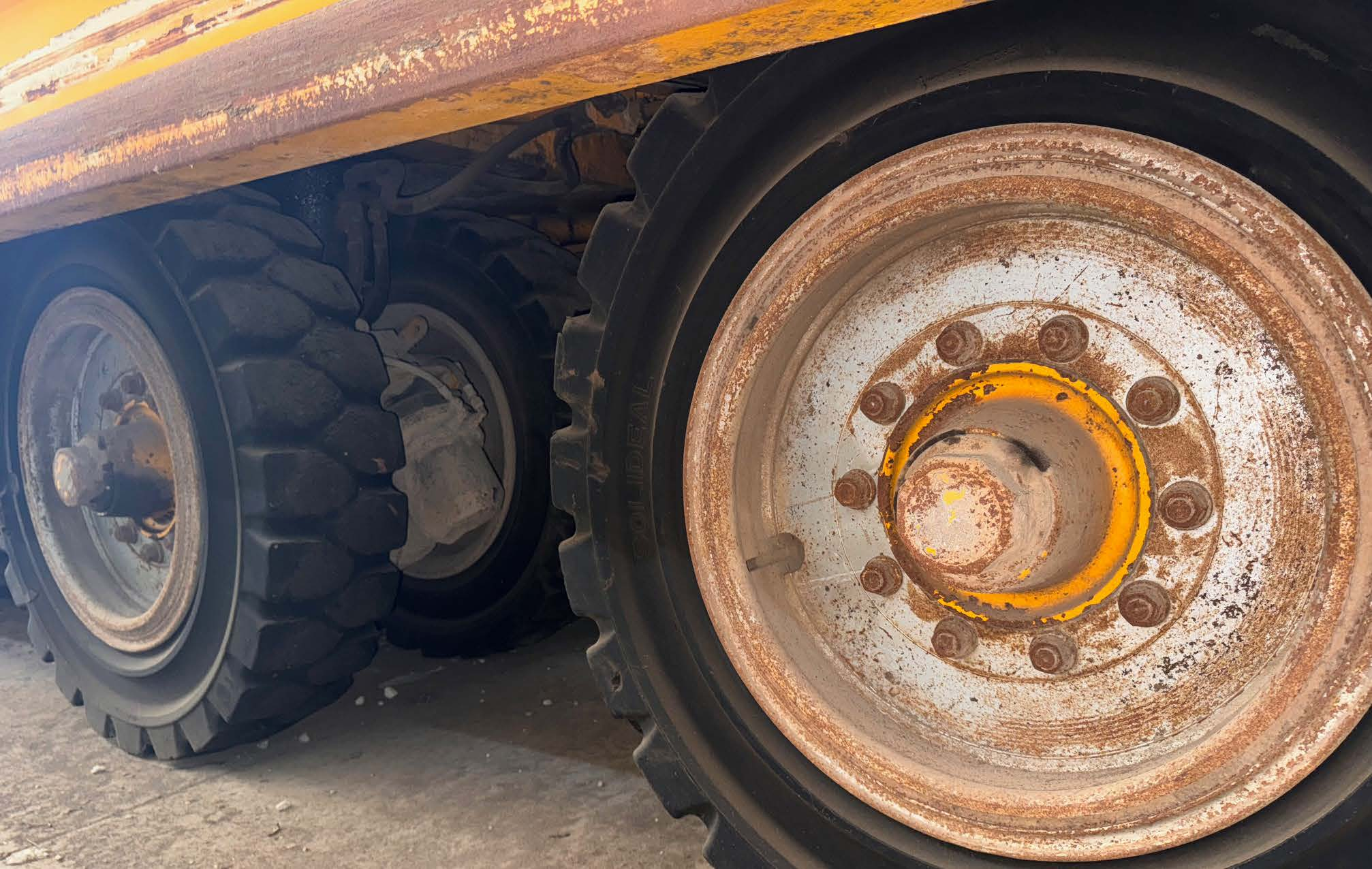

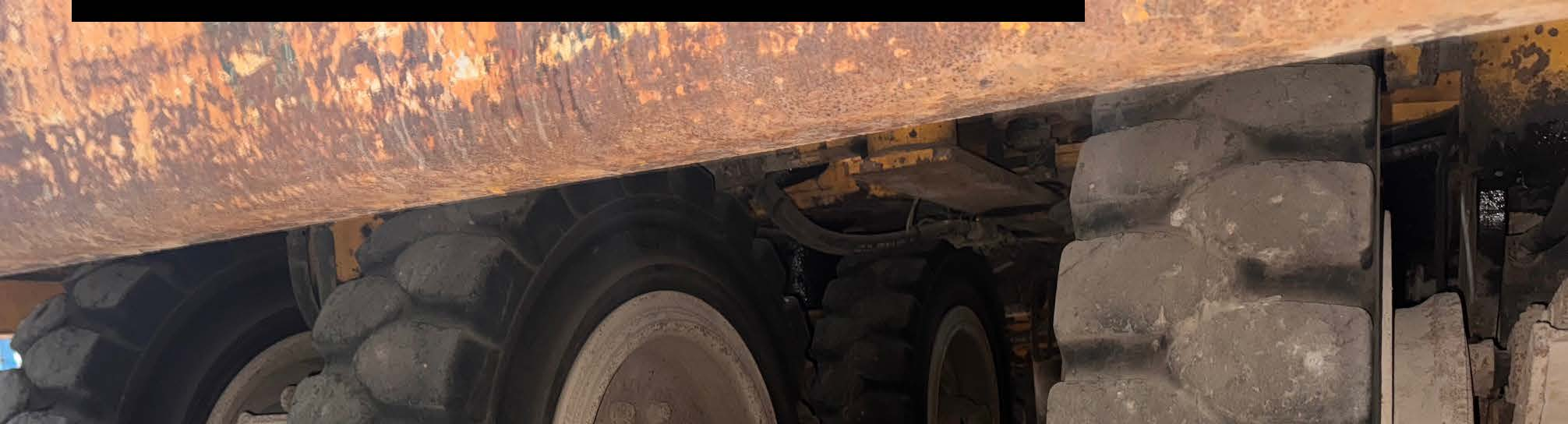

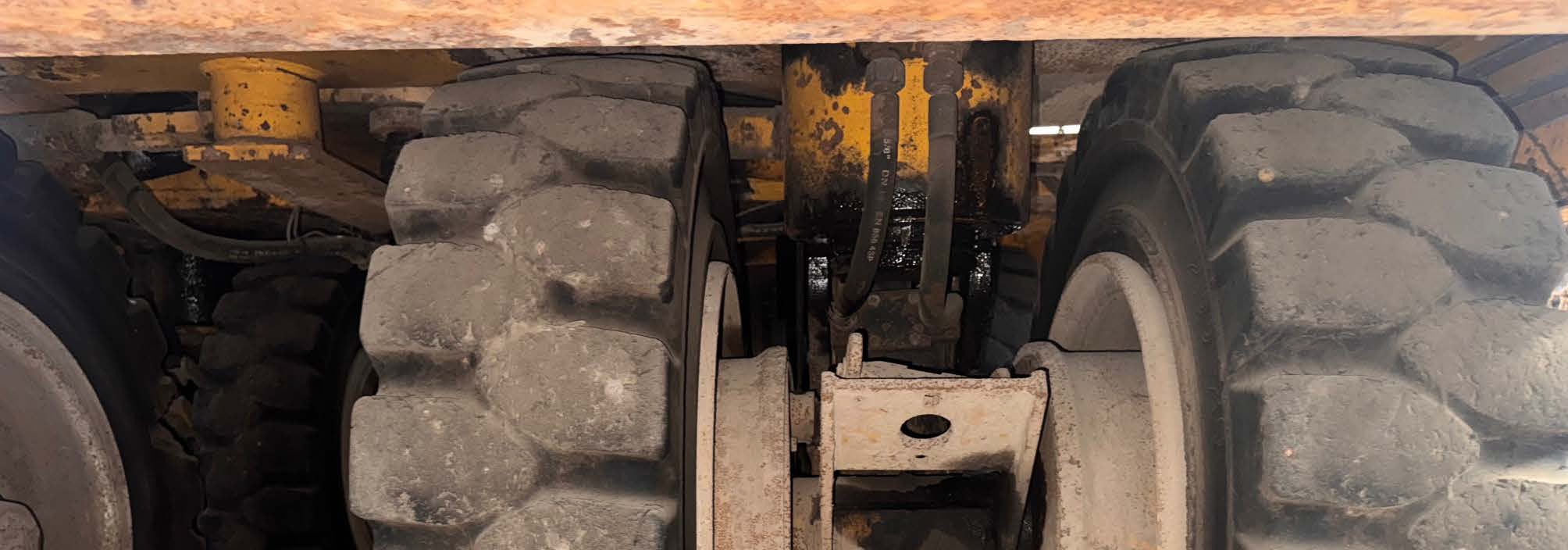

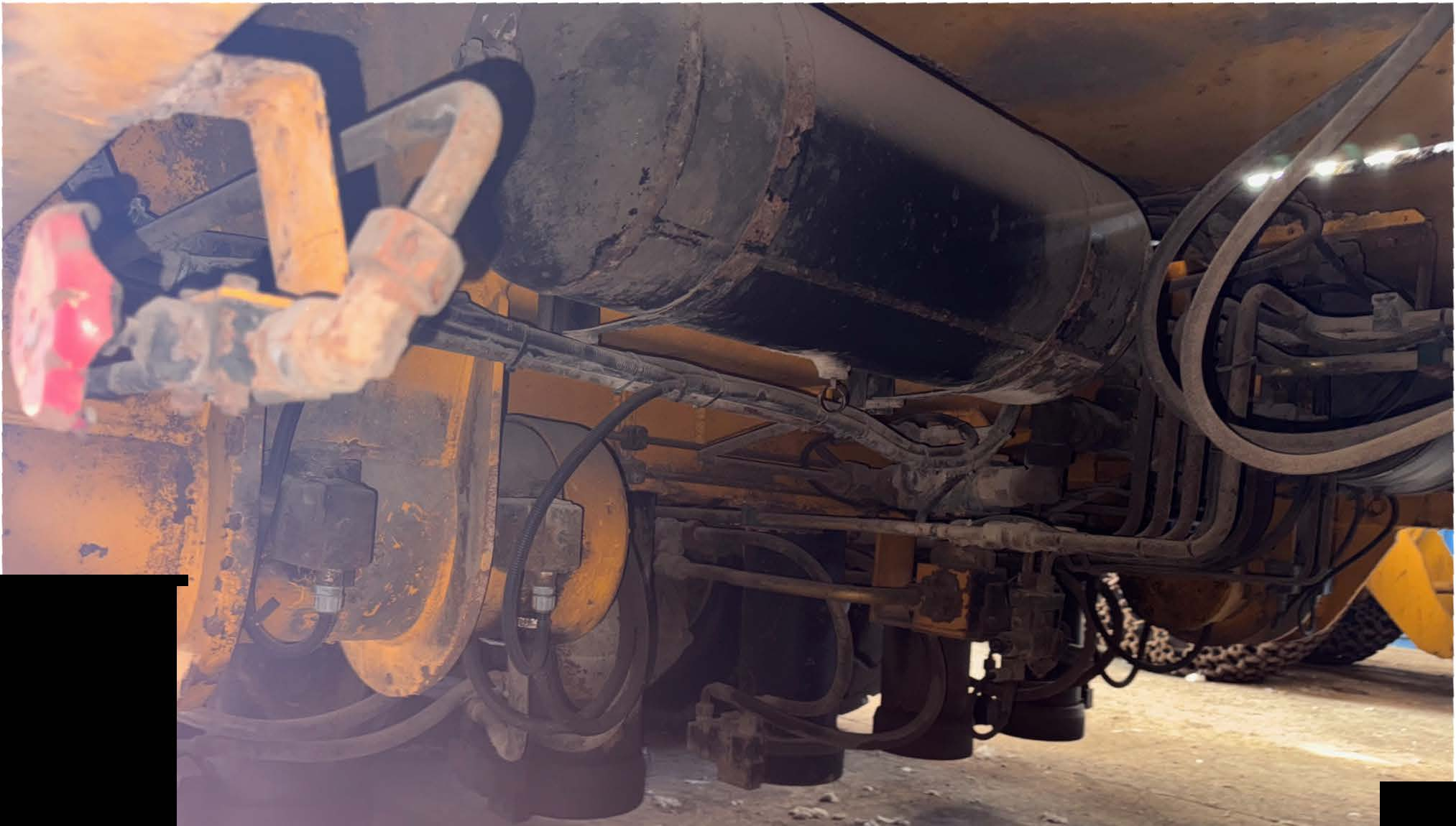

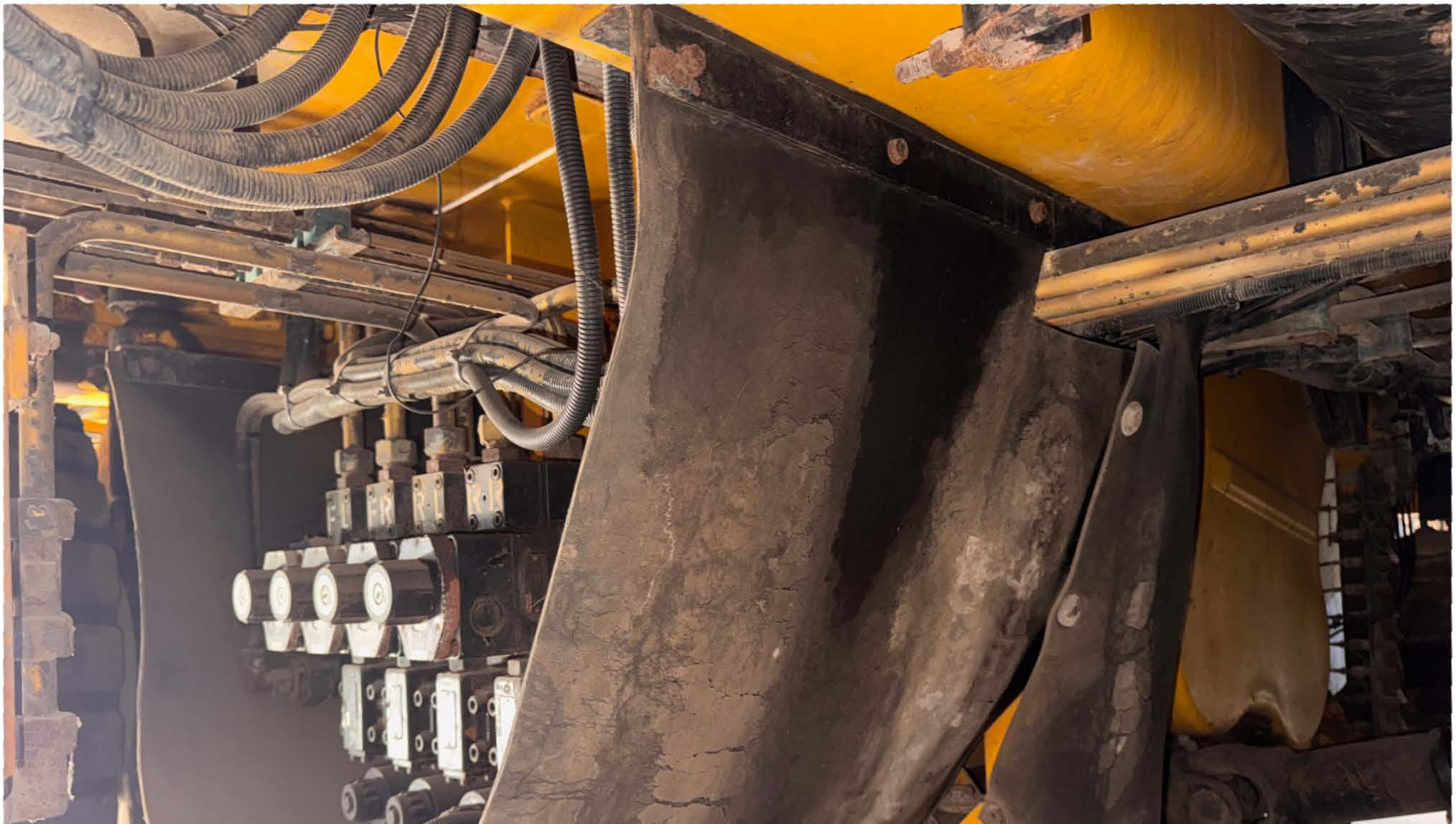

Tyres bogies 16 x 12.00 – 24 EM

Tyres drive axle 8 x 14.00 R 24 EM

Inflation pressure 10 bar

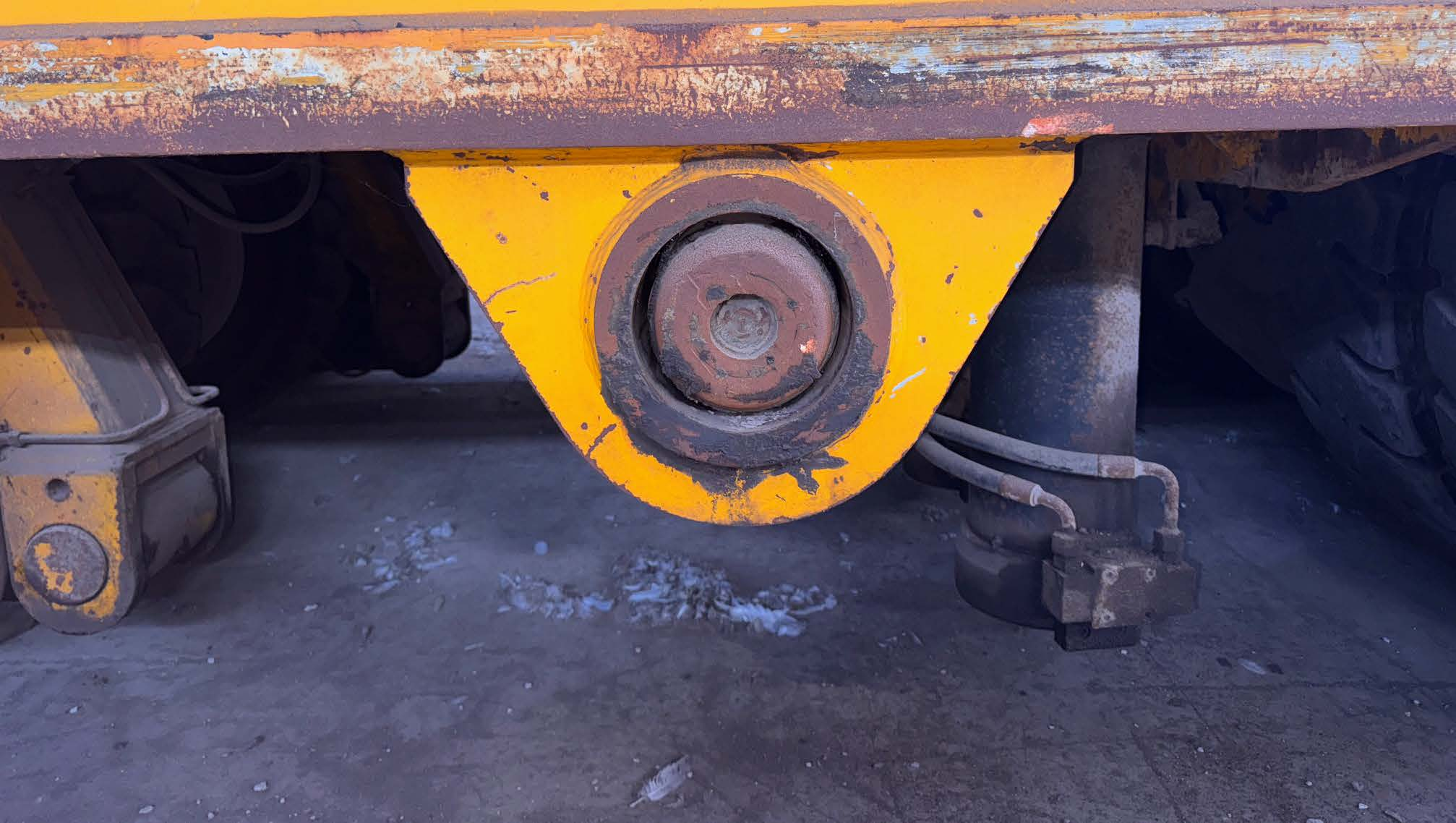

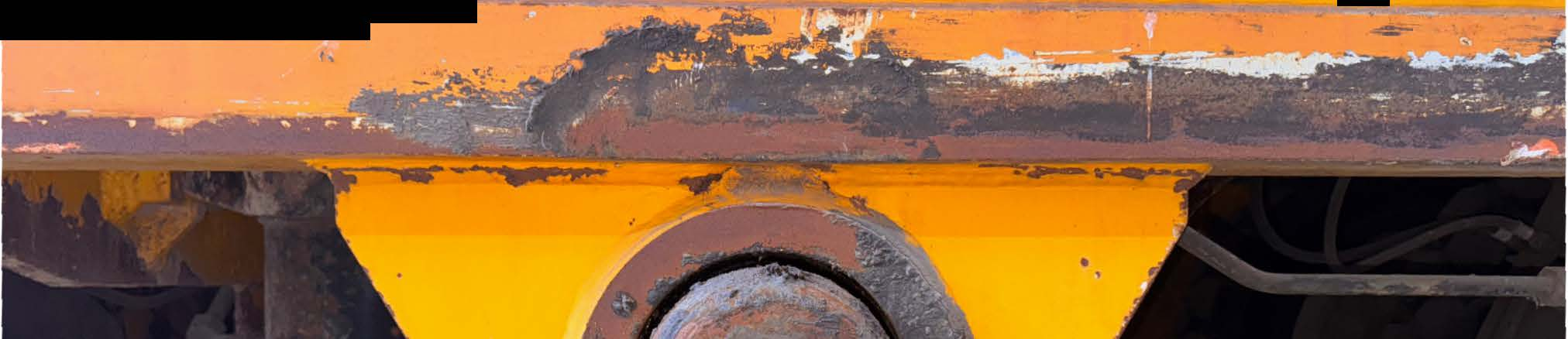

Load per bogie 6 x 36.000 kg

Traction at 1 km/h approx. 35.000 daN

Gradient ability, loaded

(rolling resistance 25 kg/t)

approx. 12 %

Max. speed, unloaded

(rolling resistance 25 kg/t)

approx. 32 km/h

Max. speed, loaded

(rolling resistance 20 kg/t)

approx. 15 km/h

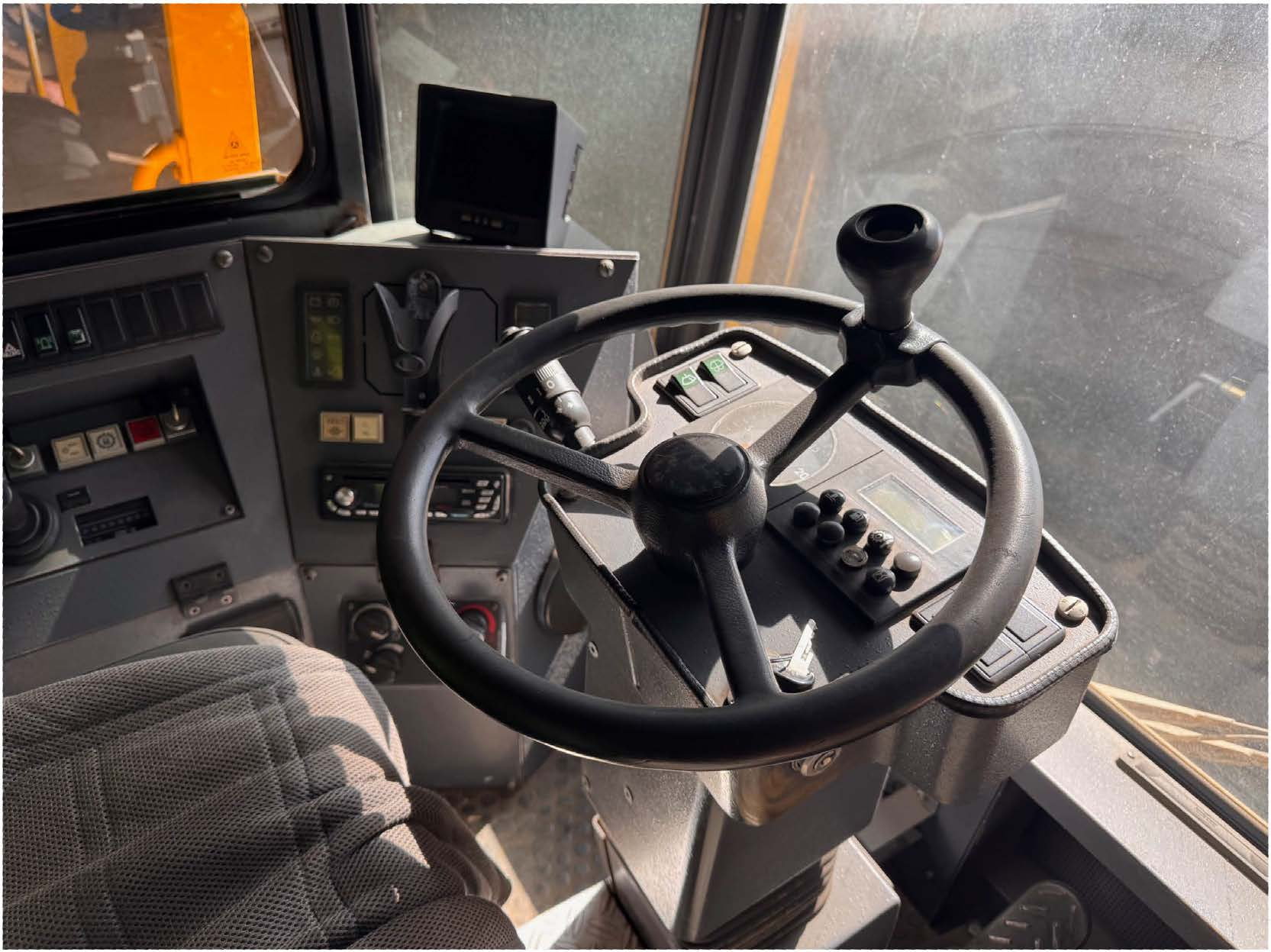

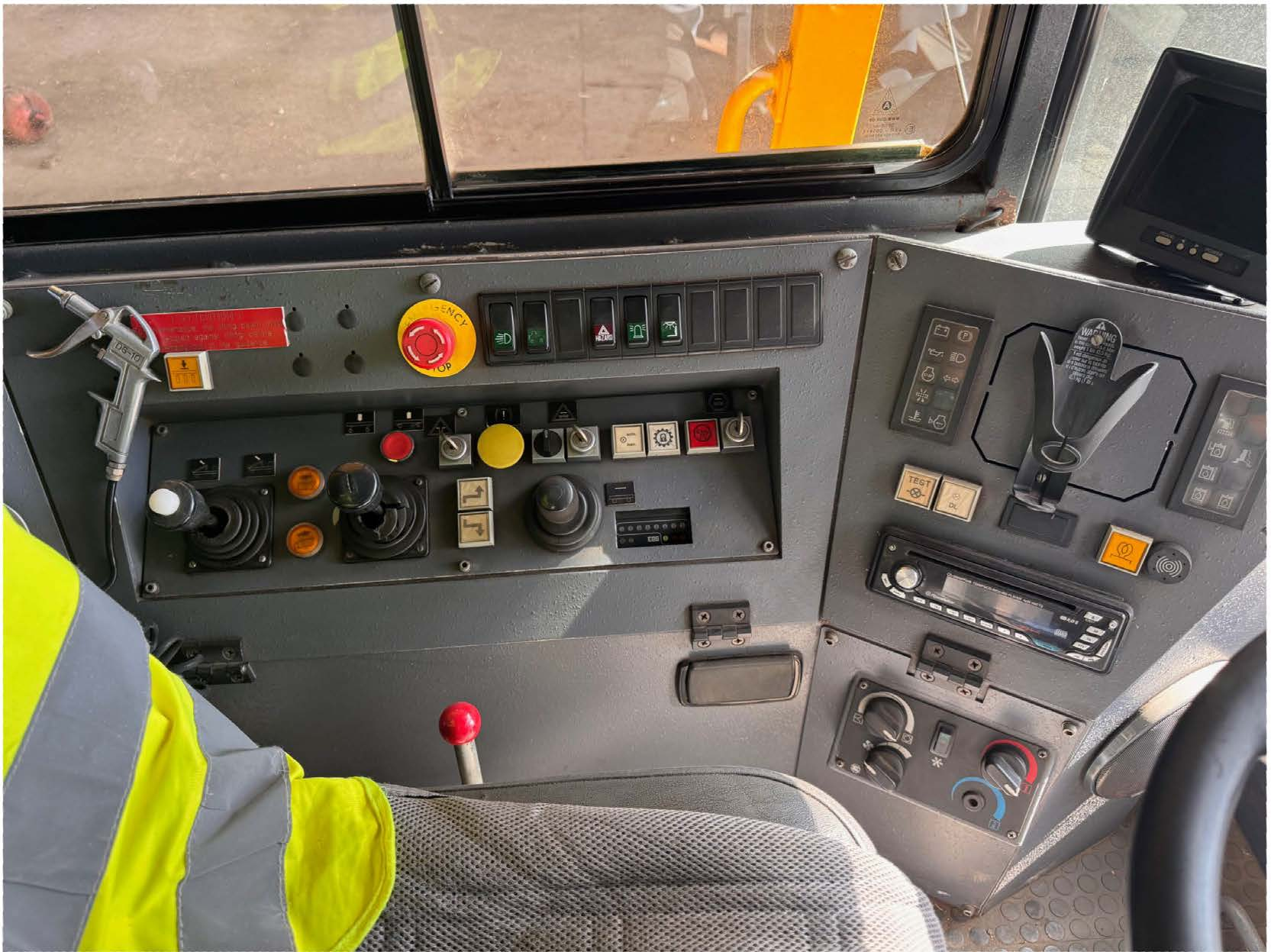

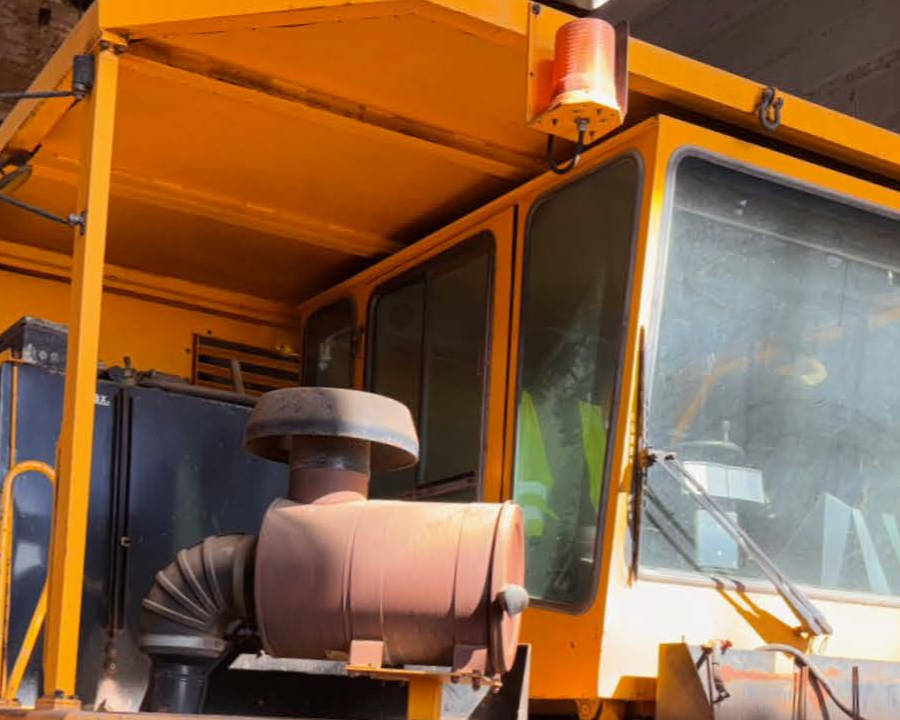

Engine:

DEUTZ diesel engine type BF 6M – 1015 CP

Water-cooled, turbocharged and after cooled

Output 314 kW = 427 HP at 1.900 rpm

EPA 2, Euromot Stage 2

With Clark gear, type 8000

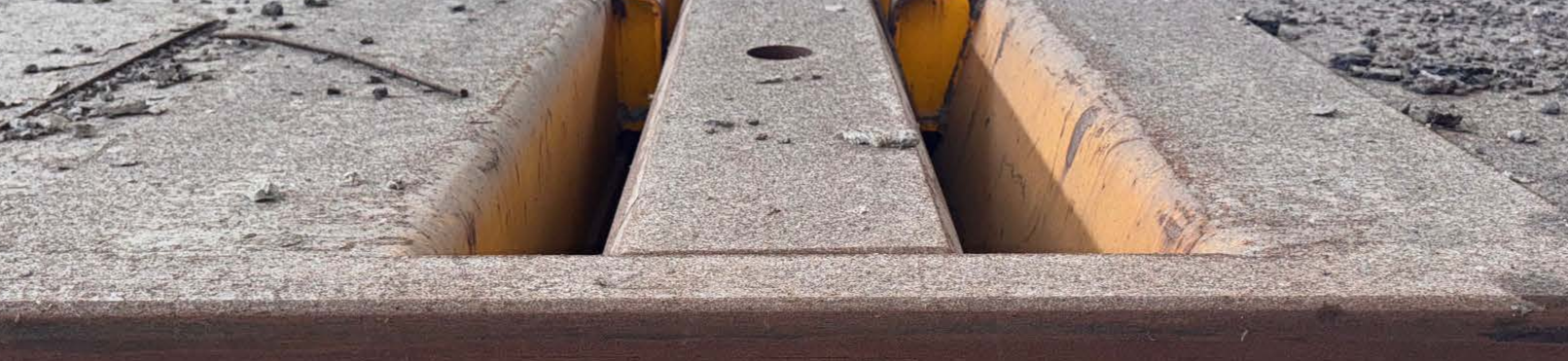

Platform height, lowered approx. 1.430 mm

Platform height in driving position approx. 1.730 mm

Total lift approx. 600 mm

Axle load compensation approx. ±300 mm

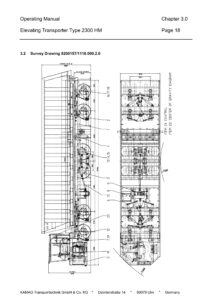

Total length of the transporter approx. 15.780 mm

Total width approx. 3.400 mm

Platform length approx. 13.020 mm

Platform width approx. 3.400 mm

Inner turning radius approx. 5.100 mm

Outer turning radius approx. 12.100 mm

Year 2005
