Description

Description​

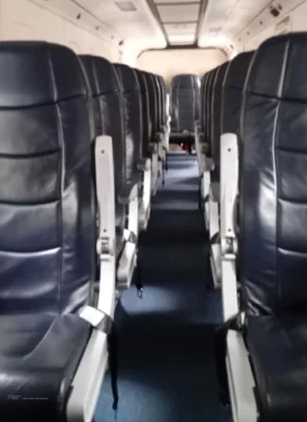

Manufacturer & Model: RUAG Aerospace Services GmbH Dornier 228-212NG Location: UK All Weather Operating Limitation CAT. 1 Operational Status In Service (Last ARC 12 Sep 2025) Cabin 19 Passenger Seats / 2 Crew (Cockpit) Seats / Cockpit & Cabin Hand Fire Extinguishers / Cabin Environmental Control System (ECS) Credits: Photo is courtesy of Colin Cooke​

Airframe​

Total Time 3,971​

Total Landings 13,220​

Max Take off Weight 14,109.58 lb​

Max Landing Weight 14,109.58 lb​

Max Zero Fuel Weight 13,095.46 lb​

Fuel Capacity Volume 638.5 gal​

Engine 1​

Engine 1 Make/Model HONEYWELL​

Engine 1 Serial Number P-100527​

Engine 1 Time 1,106 SOH ​

Engine 1 TBO 5000​

Engine 1 Cycles 3,629​

Engine 1 Notes Honeywell TPE331-10GP-511D TSN Hours / Cycles 5,629 Hours / 17,850 Cycles at 21st December 2025 TSO Hours / Cycles 1,106 Hours / 3,629 Cycles at 21st December 2025 Due (Limiter) Due July 2029 approx. (3rd Stage Turbine due October 2026)​

Engine 2​

Engine 2 Serial Number P-100564​

Engine 2 Time 3,971 SNEW ​

Engine 2 TBO 5000​

Engine 2 Notes TSN Hours / Cycles 3,971 Hours / 13,220 Cycles at 21st December 2025 Due (Limiter) Due November 2026 approx. (3rd Stage Turbine due February 2026)​

​Props​

Prop 1 Manufacturer MT​

Prop Notes​

MT-Propeller MTV27-1ECFR(G) (TBO 4,500 Hours / 72 Months) Propeller S/N (Left Hand) 170496(Hub) TSN Days / Hours / Cycles 2,672 Days / 3,971 Hours / 13,220 Cycles TSO Days / Hours / Cycles663 Days / 1,106 Hours / 3,629 Cycles Due Due January 2029 approx. Propeller S/N (Right Hand)171365 (Hub) TSN Days / Hours / Cycles 2,672 Days / 3,971 Hours / 13,220 Cycles TSO Days / Hours /Cycles 663 Days / 1,106 Hours / 3,629 Cycles Due Due January 2029 approx.​

Avionics​

ADS-B Equipped​

Yes​

LPV​

Yes​

Avionics/Radios​

4 x Universal EFI-890R Advanced Displays Dual AEE ADCU-9000 ADCU King KCP-299 Flight Computer Universal DCU-4300 Data Concentrator Units (DCU) King KDC-298 Air Data Computer Dual Thommen AC-32 Air Data Computers (ADC) CAWS 4802 Computer Unit Dual LITEF LCR-100 AHRU(28 VDC) Dual Collins VHF-4000 Transceivers Collins ALT-4000 Radio Altimeter Transceiver BeckerPA-3100 Amplifier King ART-2000 Digital Weather Radar Transceiver Becker Remote Electronic Unit(REU) L3Harris ESI-1000 Standby Indicator EM-6100 Detachable Configuration Module Universal TAWS (Class A) Computer (28 VDC) Dual Becker ACU-6100 Audio Control Units TCAS II w/Change7.1 Surveillance L3Harris FA2100 Solid State CVR Dual Collins NAV-4000 Navigation ReceiversL3Harris FA2100 Solid State FDR Collins DME-4000 DME Transceiver (28 VDC) ACR/Artex C406-1ELT (406 MHz) Dual L3Harris NXT-600 Mode S Transponders L3Harris Underwater Locator Beacon ADS-B (Out) Dual Universal Radio Control Units (RCU) Universal LP/LPV Monitor (28 VDC) Dual Grob-Benz Clocks Universal UNS-1EW FMS L3Harris F3000 FDAU Universal Solid State Data Transfer Unit(SSDTU)​

Modifications/Conversions​

Modifications/Conversions​

EASA 2009-0031 R2 Mar 2024 (ASB-228-279 R1) Eng. Controls: Throttle Box Assy Inspection EASA2013-0209 R0 Jan 2020 (SB-228-300 R1) Landing Gear: Inspection of MLG Axle EASA 2019-0307 R1May 2025 Landing Gear: Carbon Brake Assembly Insp. / Replacement SB-228-244 R0 Oct 2022 FMS &LPV Monitor SCN Compatibility (ATA: 34-57-00) SB-228-327 R0 Jul 2022 Ind./Recording Syst. ADCU Conversion in case of Misleading Indications SB-228-330 R0 Jan 2020 Ind./Recording Syst. DCU Configuration Modification for TAWS System SB-228-332 R0 Feb 2020 Wing-Fuselage Cnxn: Inspector Possible Bearing Displacement SB-228-345 R0 Dec 2023 Ind./Recording Syst.: Display UpgradeEFI-890R (SCN 1025.0.3)​

​
