Used Sykes HH150 8inch Water Pump
Used Sykes HH150 pump with 8” female Bauer suction and 6” NP16 flanged delivery.

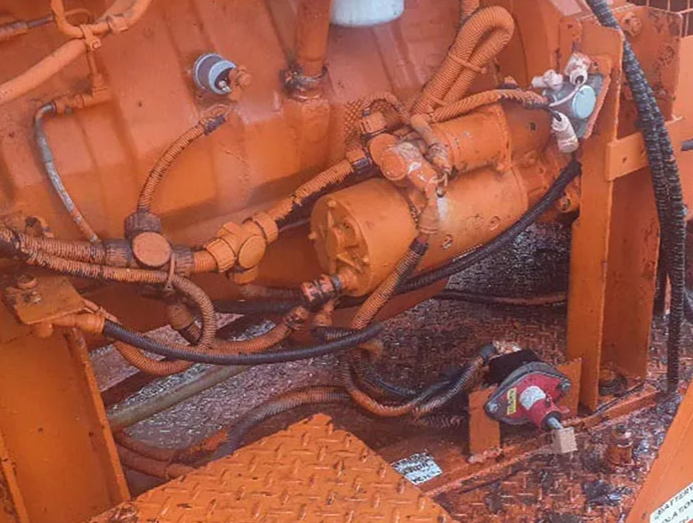

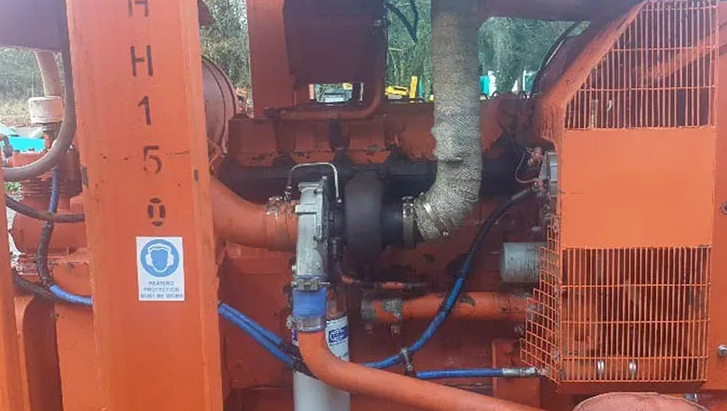

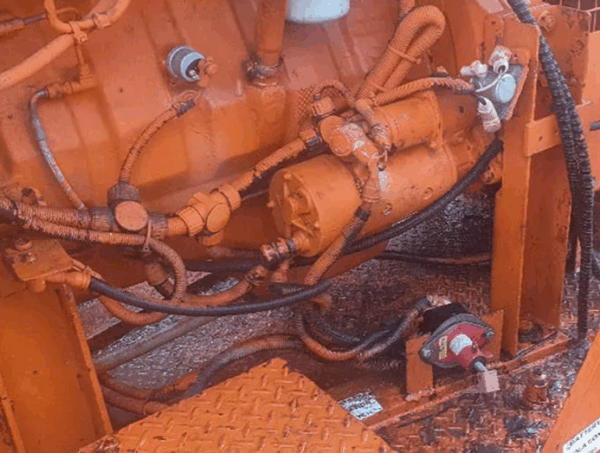

Driven by a 6 cylinder, radiator cooled, electric starter diesel engine mounted on a skid base frame with central lifting eye and chassis integral fuel tank.

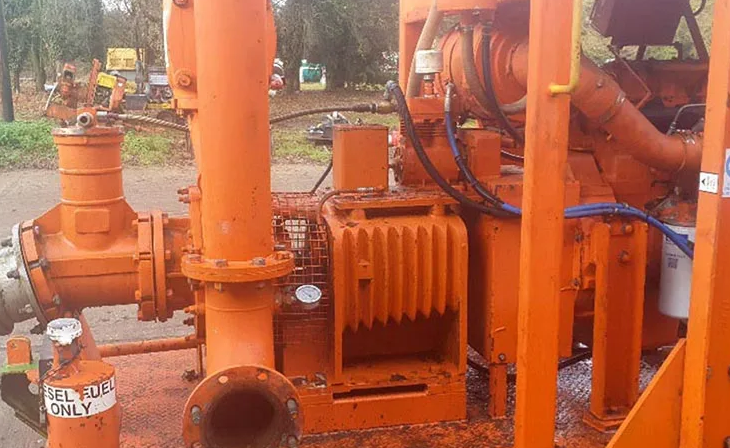

Fitted with a compressor priming system incorporating priming tank and non-return valve fitted on discharge. Suitable for dry suction lifts up to 8.5m though 6m or less is recommend.
The set has been through our workshop and is ready for sale with re-painting available prior to dispatch.
Ideal for quarry washplants water supply, high pressure jetting, industrial and irrigation applications.
Description
Technical Data
| Condition | Used (FairCondition) |
| Manufacturer | Sykes |
| Model / Part | HH150 |
| Max Flow | 540.00 m³/hr |
| Max Head | 98.00 m |
| Suction Size | 8 inch (200 mm) |
| Discharge Size | 8 inch (200 mm) |
| Solids Handling | 38 mm |
| Drive | Diesel Engine |
| Hours | 7,736 hrs |
Dimensions
| Length | 4,000 mm |
| Width | 1,500 mm |
| Height | 2,300 mm |
| Weight (Dry) | 4500.00 k |
Please Note: The dimensions and weight are approximate and may be estimated.
